SIZE | 380mm(145-160cm), 430mm(155-170cm), 480mm(165-180cm) |
---|---|
MAIN COMPONENTS | SHIMANO TX-800 TOURNEY(24SPEED) |
FRAME MATERIAL | AL6061 27.5" INTERNASIONAL STANDARD BRAKE MOUNT |
FRONT FORK | GTMRK 330G-U 27.5" 90mm TRAVEL |
HEAD SET | 28.6 STEEL ED BLACK, w/15MM CONE |
HANDLE BAR | 31.8mm, 580mm WIDE, 6° BACK |
STEM | 31.8mm CLAMP ,10°, 75mm LENGTH |
CRANK SET | PROWHEEL 8S, 42x32x22T, 170mm(380mm/430mm), 175mm(480mm) |
B/B (B/B WIDTH/AXLE) | W:73mm,L:124.5mm |
PEDAL | 1pc RESIN BODY w/TOE-CLIP&STRAP |
FRONT DERAILLEUR | SHIMANO FD-TX800, TOURNEY TX, BAND TYPE(34.9mm) |
REAR DERAILLEUR | SHIMANO RD-TX800, TOURNEY TX, 8-SPEED |
SHIFTER | SHINANO SL-M315 24-SPEED |
BRAKE | TEKTRO HD-M285 MECHANICAL DISC BRAKE, F/R 160mm ROTOR |
BRAKE LEVER | ALLOY BLACK LEVER & BRACKET |
FREE WHEEL | SHIMANO CS-HG200-8, 8-SPEED |
CHAIN | KMC Z8.3 |
SADDLE | SELLE ROYAL MATT BLACK COVER W/ORIGUNAL LOGO |
SEAT POST | KALLOY 31.6mmx350mm |
FRONT WHEEL | WEINMANN 27.5" 32H RIM, 6HOLE DISC HUB, 14G STAINLESS SPOKES |
REAR WHEEL | WEINMANN 27.5" 32H RIM, 6HOLE DISC HUB, 14G STAINLESS SPOKES |
HUB | JOYTECH 6HOLE DISC HUB |
RIM | WEINMANN 27.5" 32H |
TIRE | CST 27.5x1.95" |
Accessories | KICK STAND |

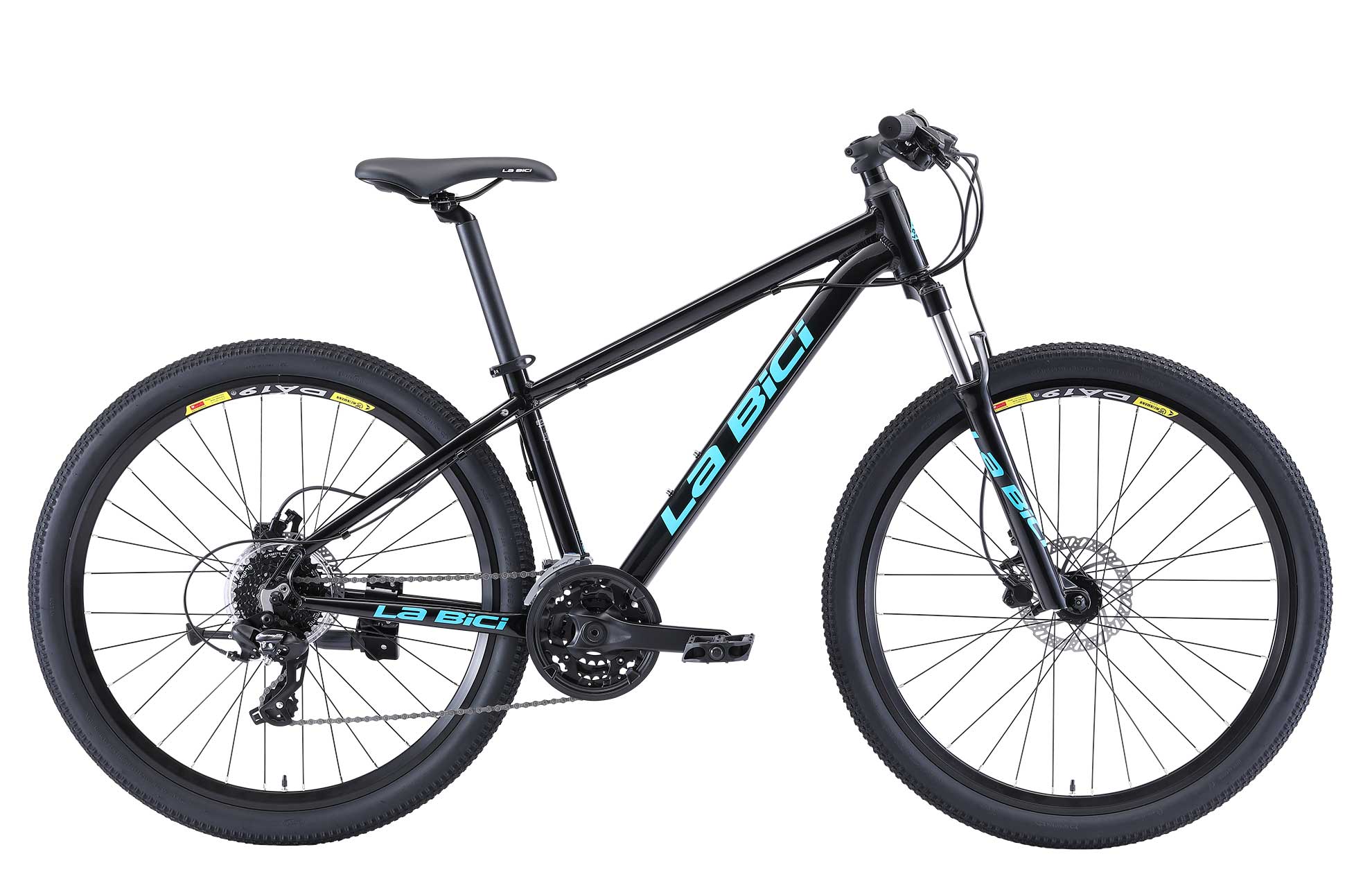

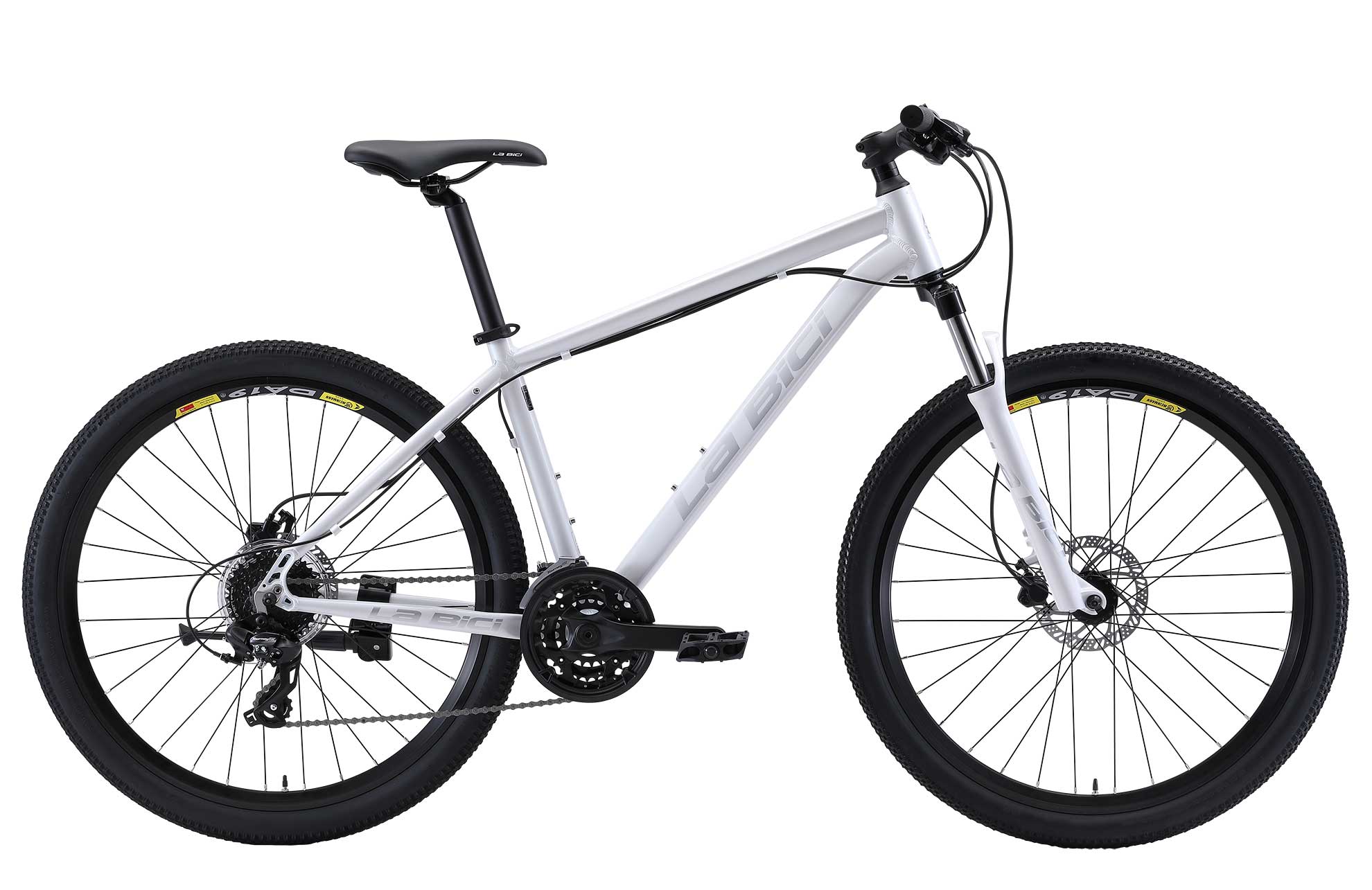

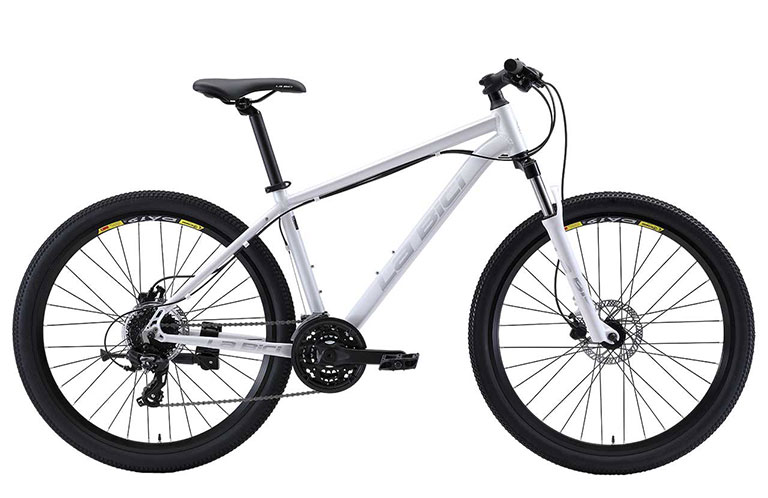

COLOR | BLACK, WHITE |
TYPE NAME |
MTB 27.5 | ||
---|---|---|---|
A/ Frame Size (mm) |
380 | 430 | 480 |
B/ Top Tube (Horizontal) (mm) |
575 | 600 | 620 |
C/ Head Angle |
69 | 69 | 69 |
D/ Seat Angle |
73 | 73 | 73 |
E/ Rear Center (mm) |
430 | 430 | 430 |
F/ Wheel Base (mm) |
1073 | 1099 | 1120 |
G/Fork Offset (mm) |
42 | 42 | 42 |
H/ BB Drop (mm) |
50 | 50 | 50 |
I/ Head Tube (mm) |
110 | 120 | 135 |
J/ Stand Over Height (mm) |
713 | 744 | 778 |
L/ Stack (mm) |
583 | 593 | 607 |
M/ Reach (mm) |
396 | 418 | 434 |
※リアエンド幅 (mm) |
135 | 135 | 135 |
適応身長 (cm) |
145 ~160 |
155 ~170 |
165 ~180 |
