SIZE | 450mm(150-165cm), 470mm(160-175cm), 490mm(170-185cm) |
---|---|
MAIN COMPONENTS | SHIMANO R2000 CLARIS(16SPEED) |
FRAME MATERIAL | AL6061 700C FLAT MOUNT |
FRONT FORK | 700C CR-MO, OFFSET:52, w/FLAT MOUNT |
HEAD SET | 28.6 STEEL ED BLACK, w/15MM CONE |
HANDLE BAR | 31.8mm, 380mm(450mm), 400mm(470mm), 420mm(490mm) WIDE, |
STEM | 31.8mm CLAMP ,7°, 70mm(450mm/470mm), 80mm(490mm) LENGTH |
CRANK SET | PROWHEEL 8S, 46x34T, 165mm(450mm), 170mm(470mm/490mm) |
B/B (B/B WIDTH/AXLE) | W:68mm,L:110mm |
PEDAL | 1pc RESIN BODY |
FRONT DERAILLEUR | SHIMANO FD-R2000, CLARIS, 8-SPEED, BAND-TYPE (31.8mm) |
REAR DERAILLEUR | SHIMANO RD-R2000, CLARIS, GS 8-SPEED |
SHIFTER | SHINANO ST-R2000, CLARIS 24-SPEED |
BRAKE | TEKTRO MD-C310F MECHANICAL DISC, F/R 160mm ROTOR |
BRAKE LEVER | SHINANO ST-R2000, CLARIS 24-SPEED |
FREE WHEEL | SHIMANO CS-HG50 8-S, 8-SPEED |
CHAIN | KMC Z9 |
SADDLE | SELLE ROYAL MATT BLACK COVER W/ORIGUNAL LOGO |
SEAT POST | KALLOY 27.2mmx350mm |
FRONT WHEEL | WEINMANN 700C 32H RIM, 6HOLE DISC HUB, 14G STAINLESS SPOKES |
REAR WHEEL | WEINMANN 700C 32H RIM, 6HOLE DISC HUB, 14G STAINLESS SPOKES |
HUB | JOYTECH 6HOLE DISC HUB |
RIM | WEINMANN 700c 32H |
TIRE | KENDA K192 700x35c |
Accessories | - |

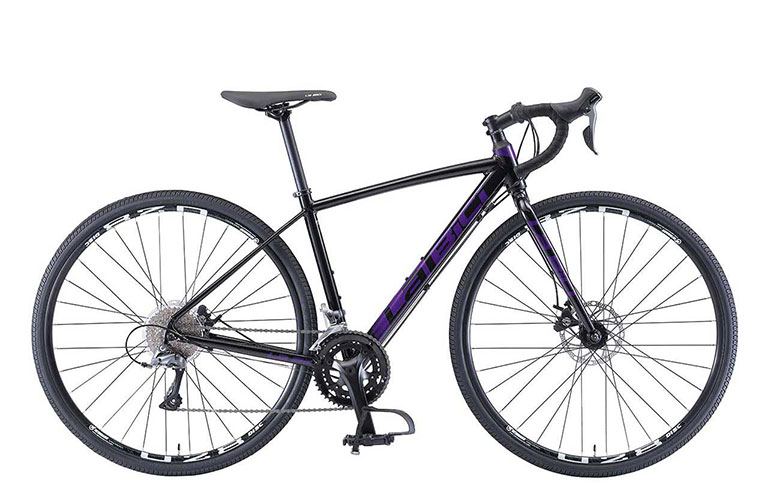

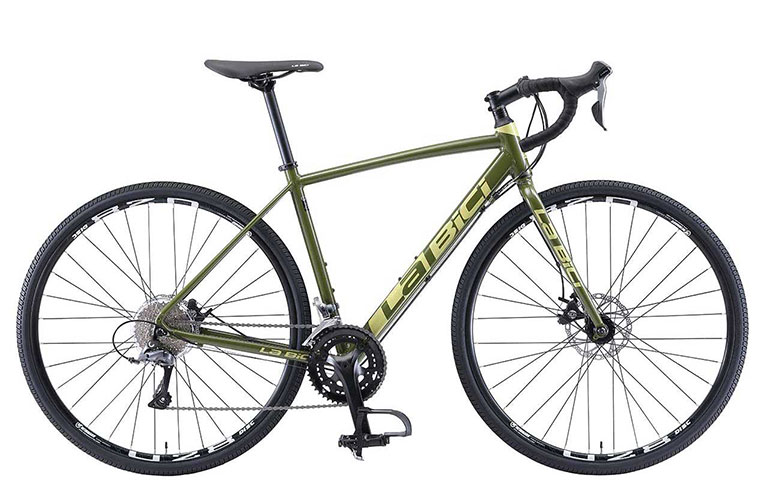

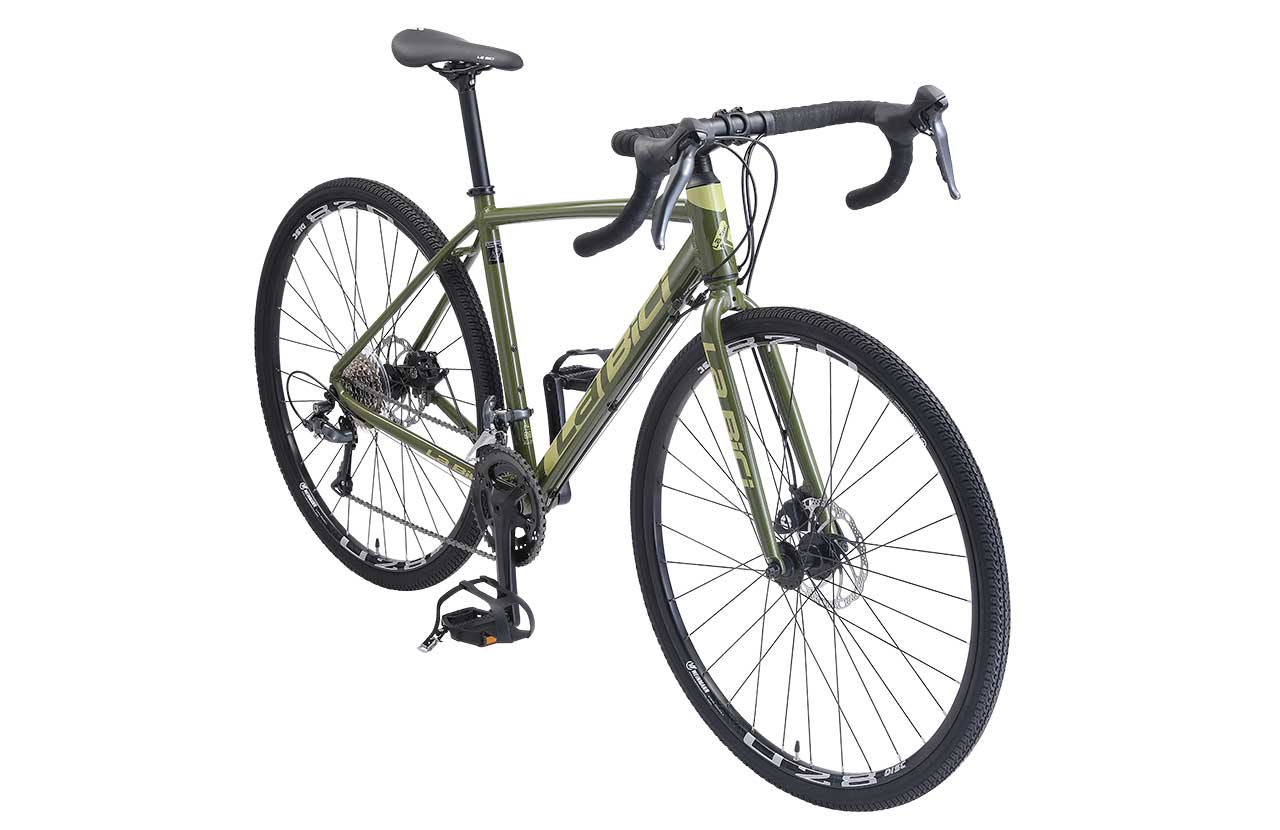

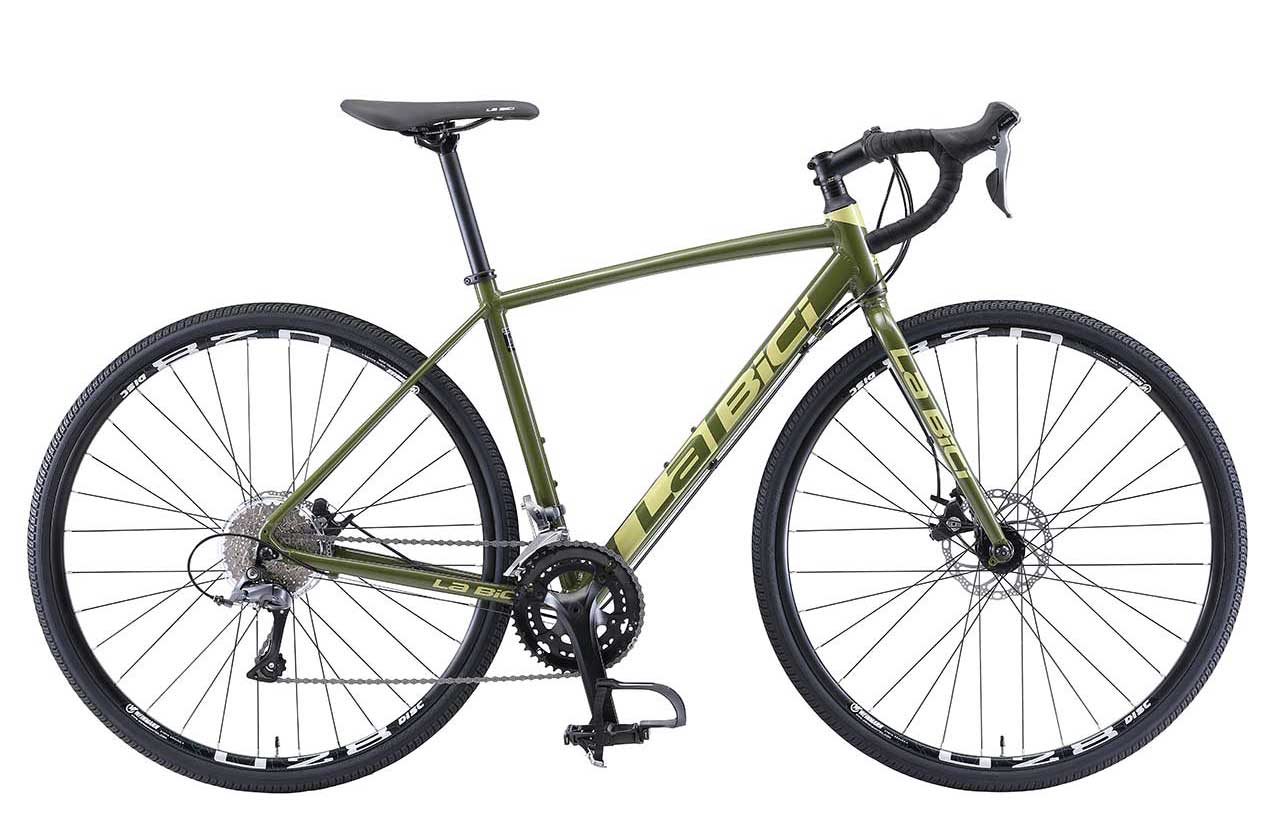

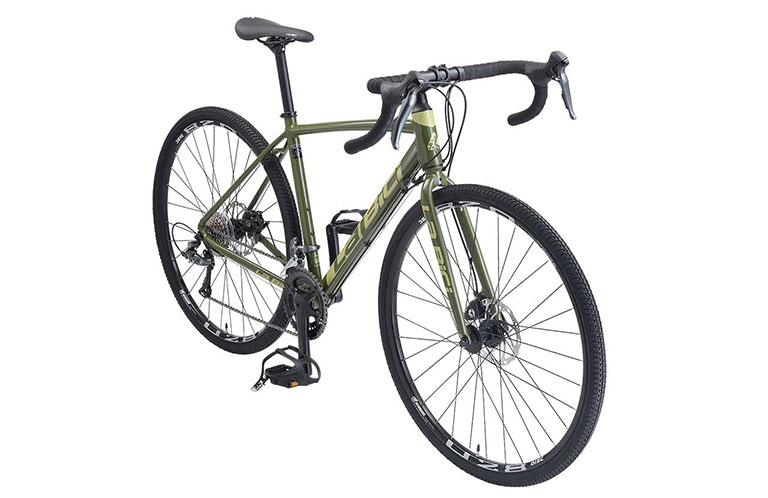

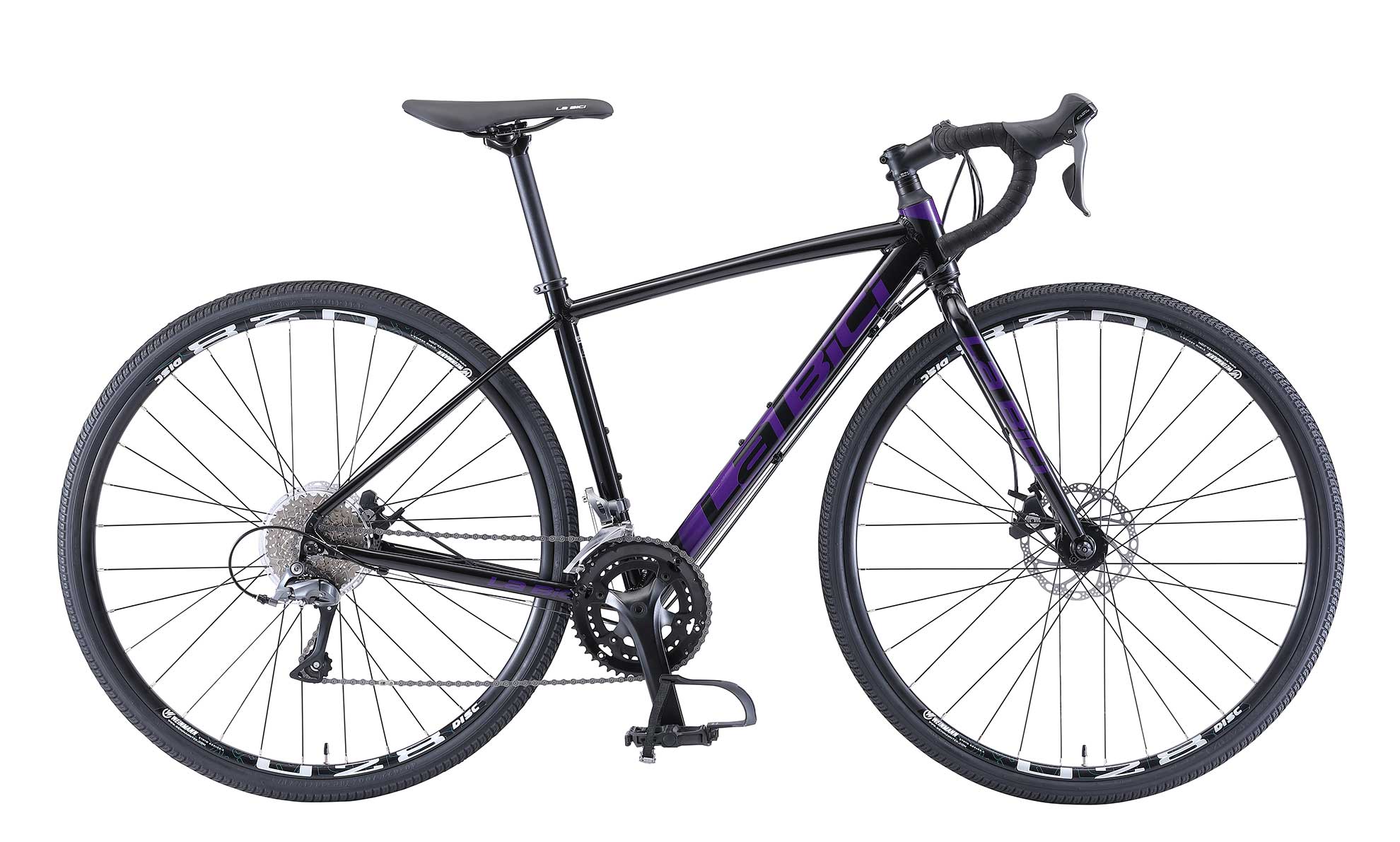

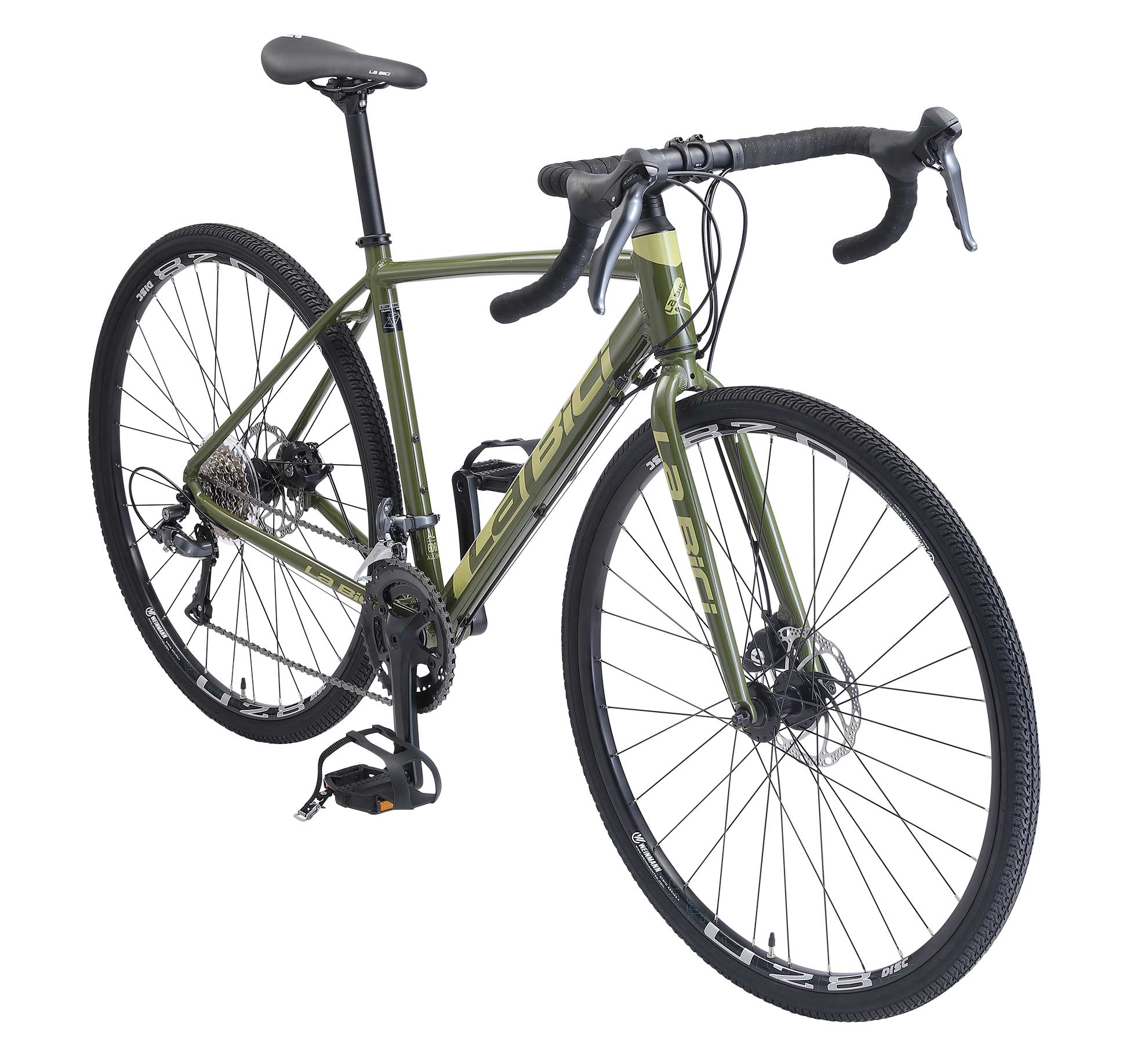

COLOR | BLACK, KHAKI |
TYPE NAME |
GRAVEL 700C | ||
---|---|---|---|
A/ Frame Size (mm) |
450 | 470 | 490 |
B/ Top Tube (Horizontal) (mm) |
510 | 520 | 535 |
C/ Head Angle |
70 | 70.5 | 71.5 |
D/ Seat Angle |
75 | 74.5 | 74 |
E/ Rear Center (mm) |
440 | 440 | 440 |
F/ Wheel Base (mm) |
1018 | 1022 | 1023 |
G/ Fork Offset (mm) |
52 | 52 | 52 |
H/ BB Drop (mm) |
82.5 | 77.5 | 77 |
I/ Head Tube (mm) |
100 | 110 | 125 |
J/ Stand Over Height (mm) |
740 | 758 | 778 |
L/ Stack (mm) |
535 | 541 | 559 |
M/ Reach (mm) |
366 | 369 | 374 |
※リアエンド幅 (mm) |
135 | 135 | 135 |
適応身長 (cm) |
150 ~165 |
160 ~175 |
170 ~185 |
