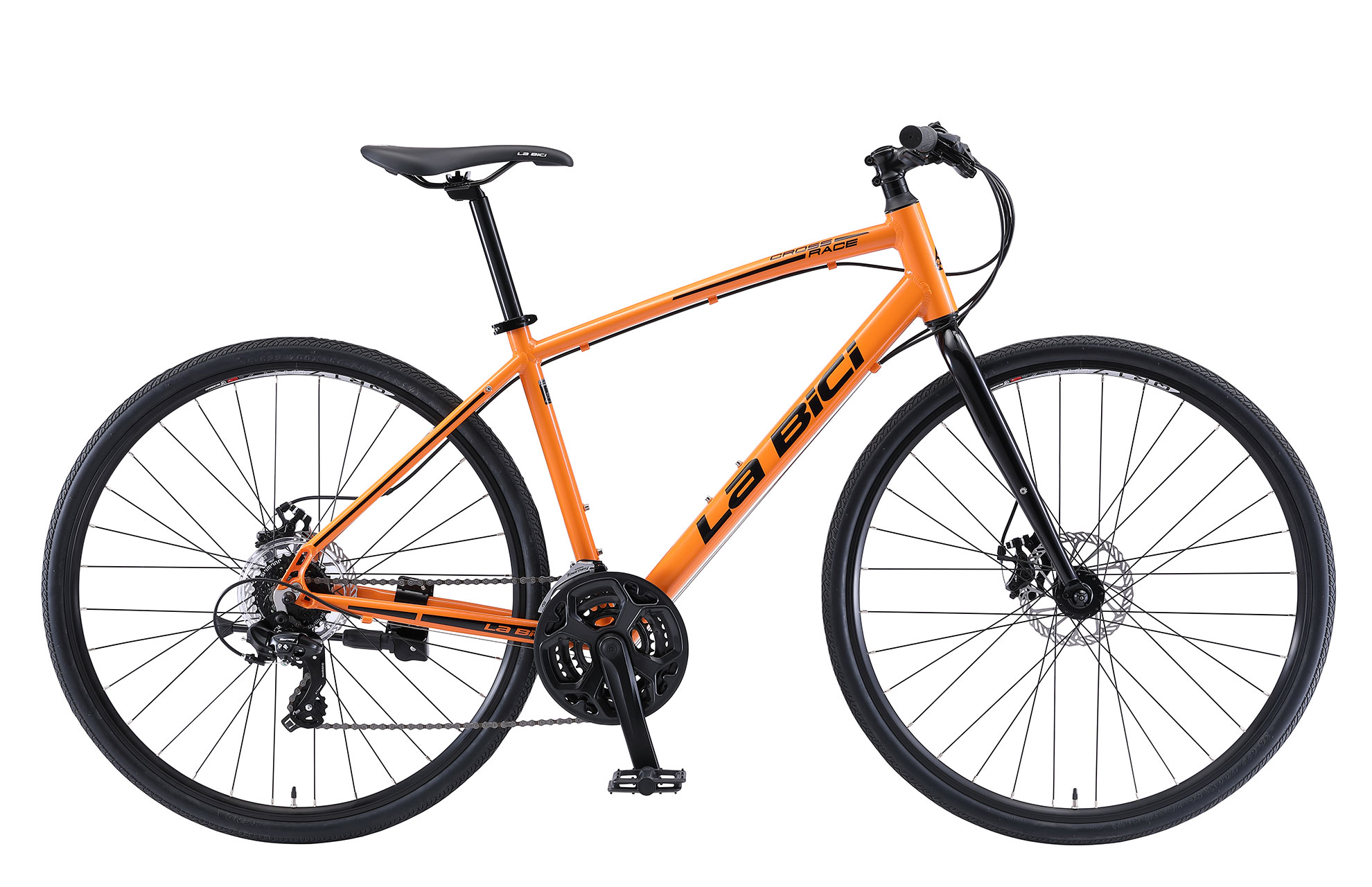

CROSS 700c/ORANGEサムネイル1

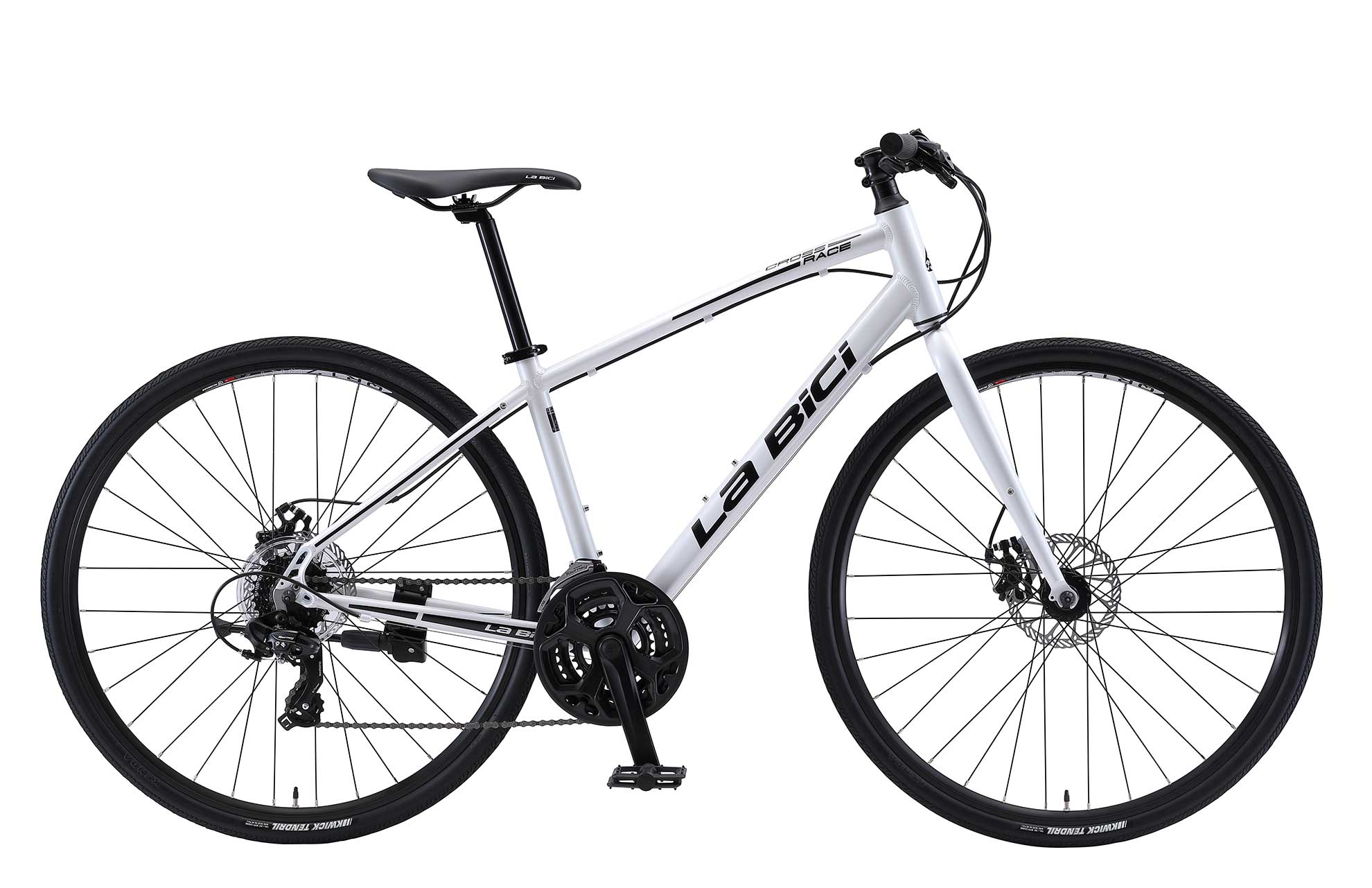

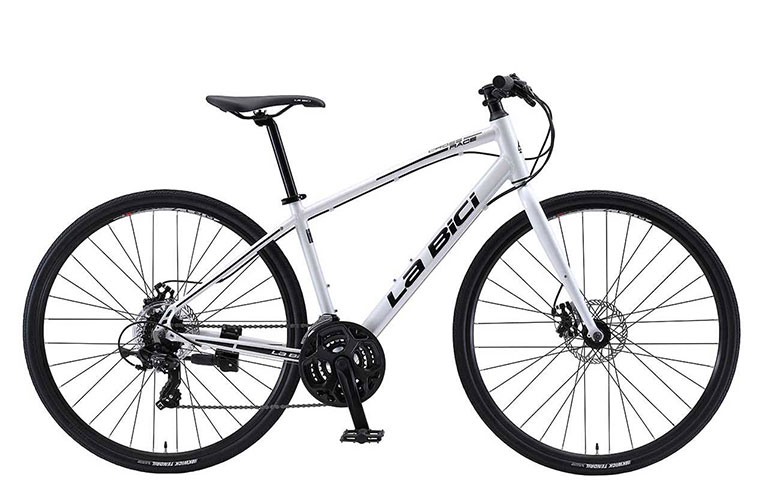

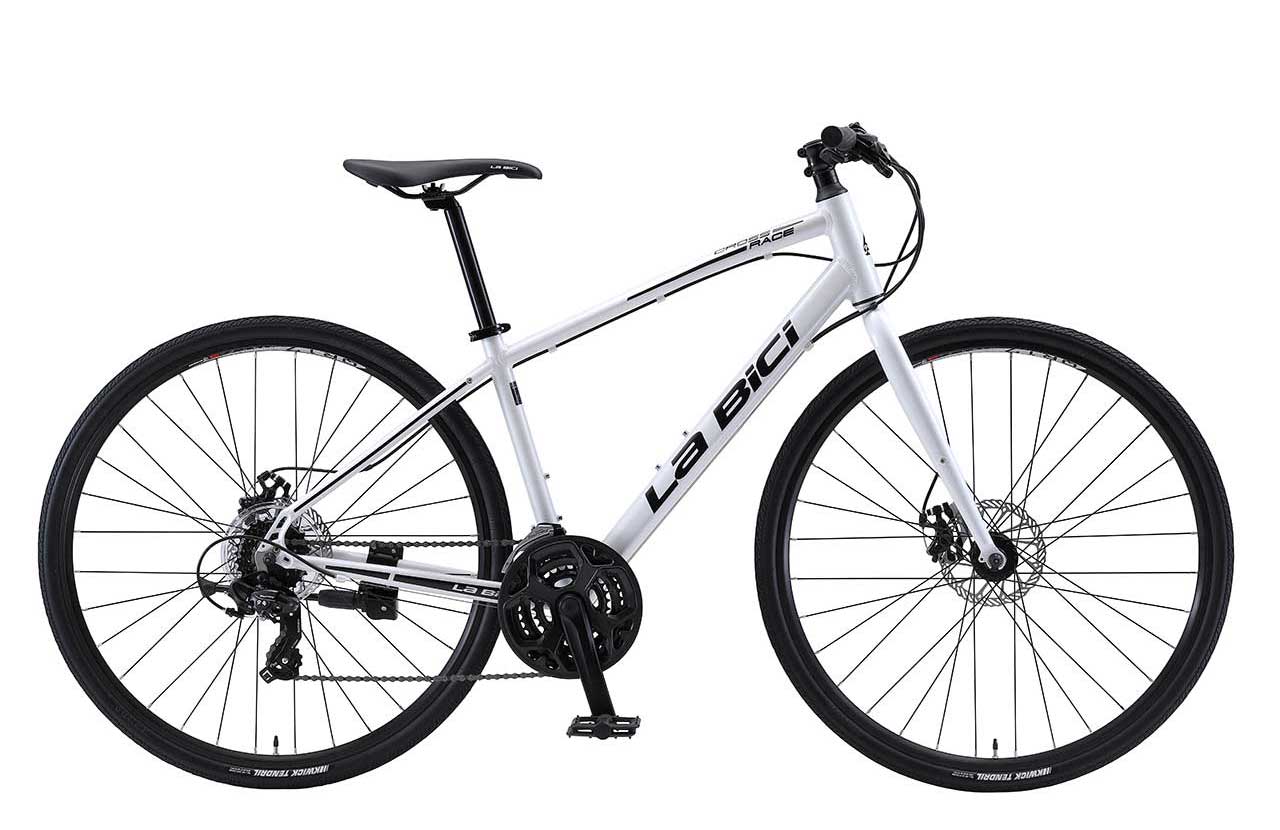

CROSS 700c/WHITEサムネイル2

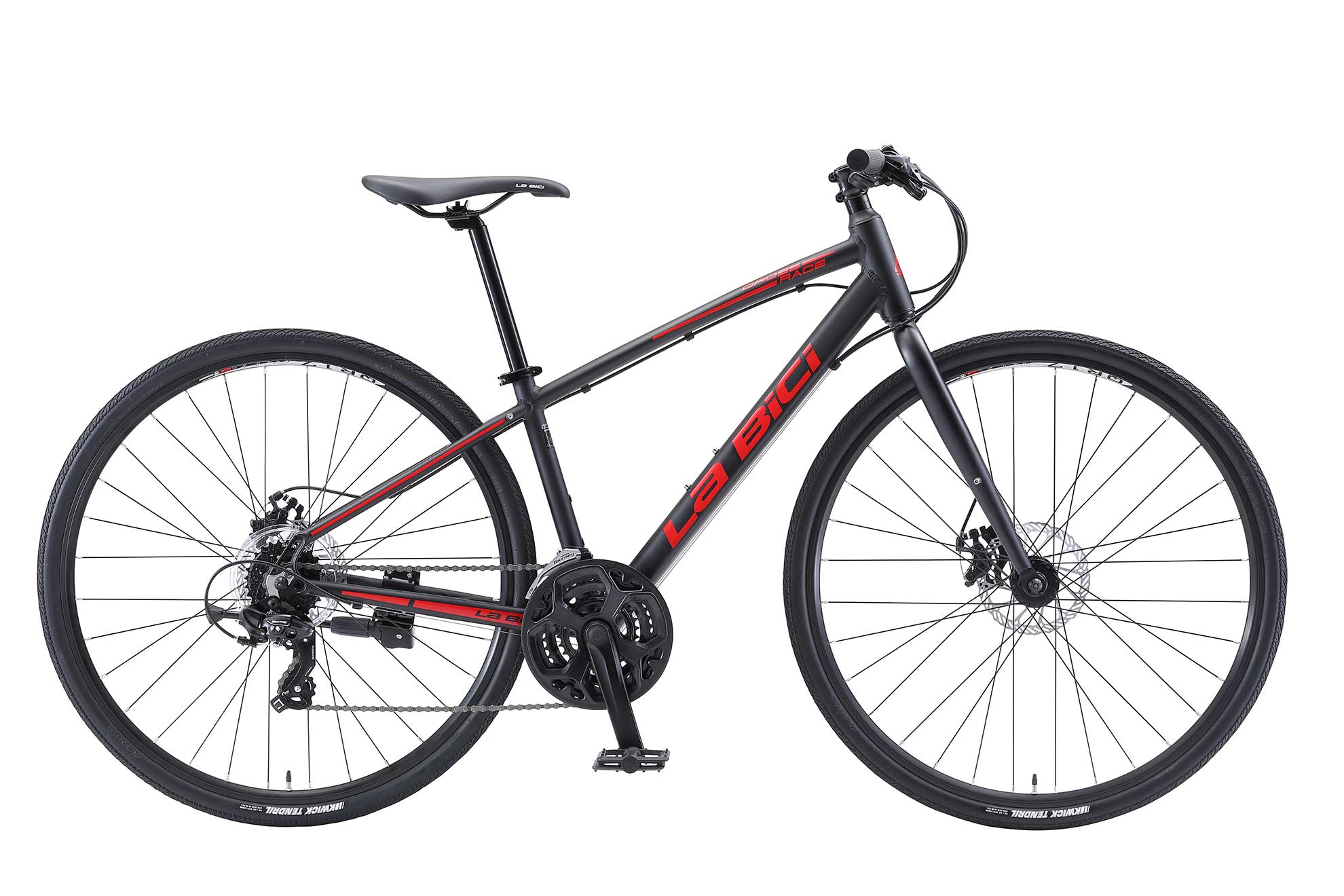

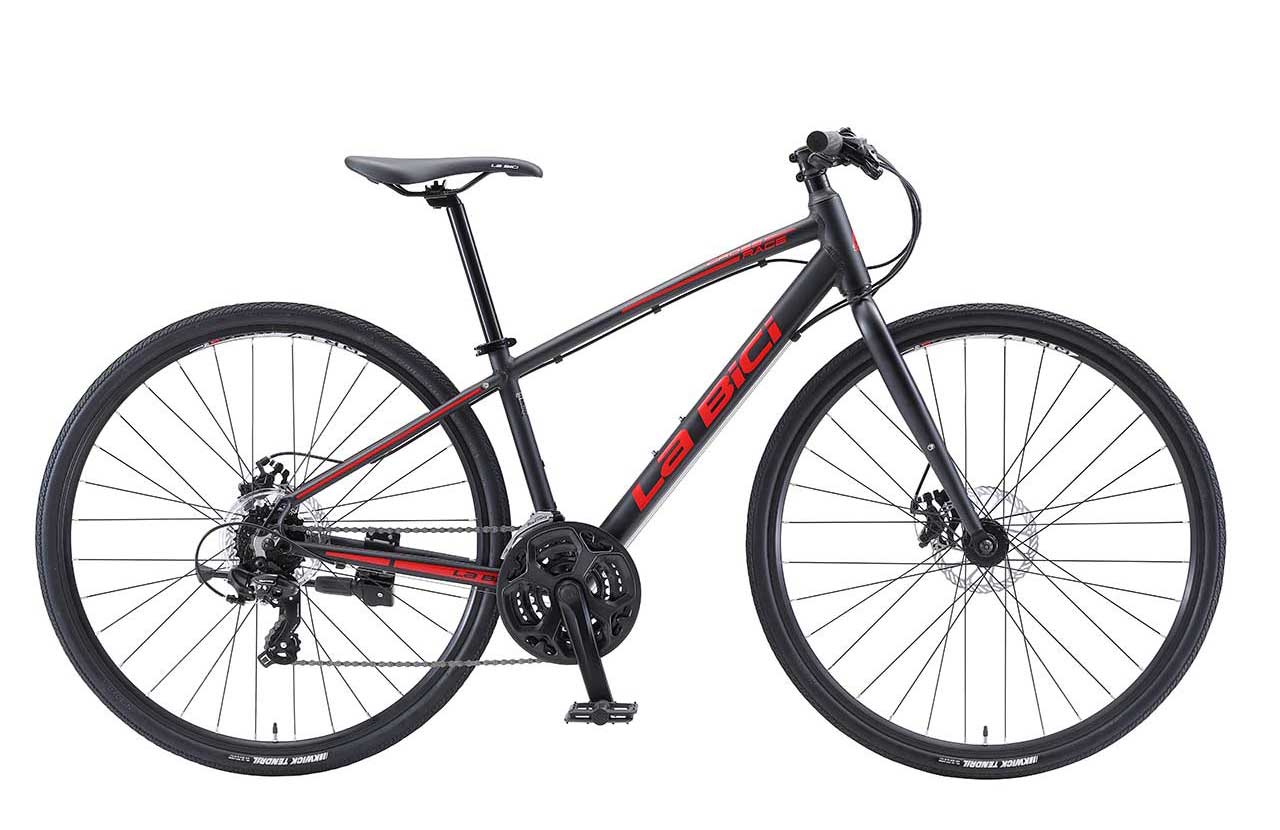

CROSS 700c/BLACKサムネイル2

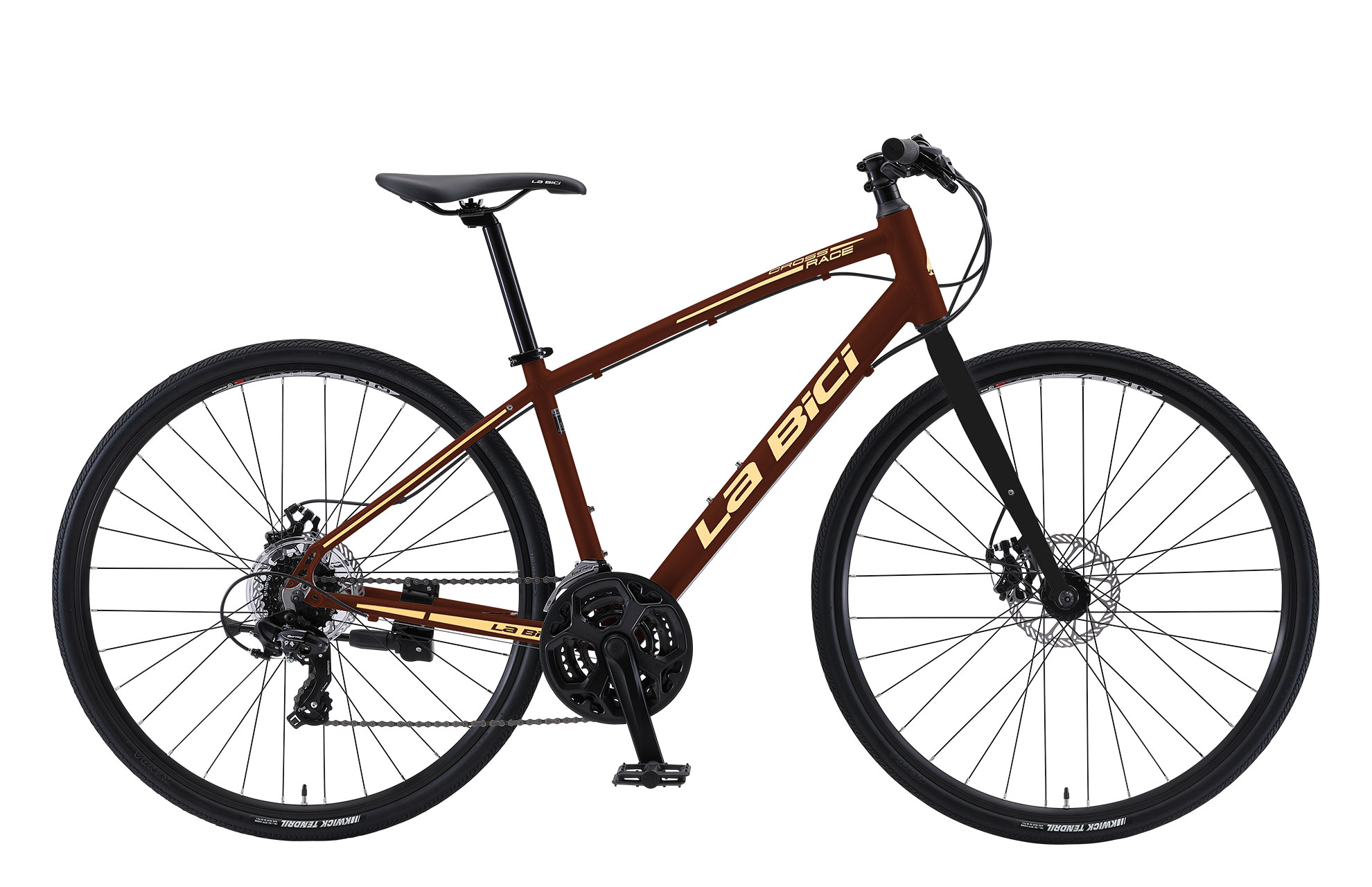

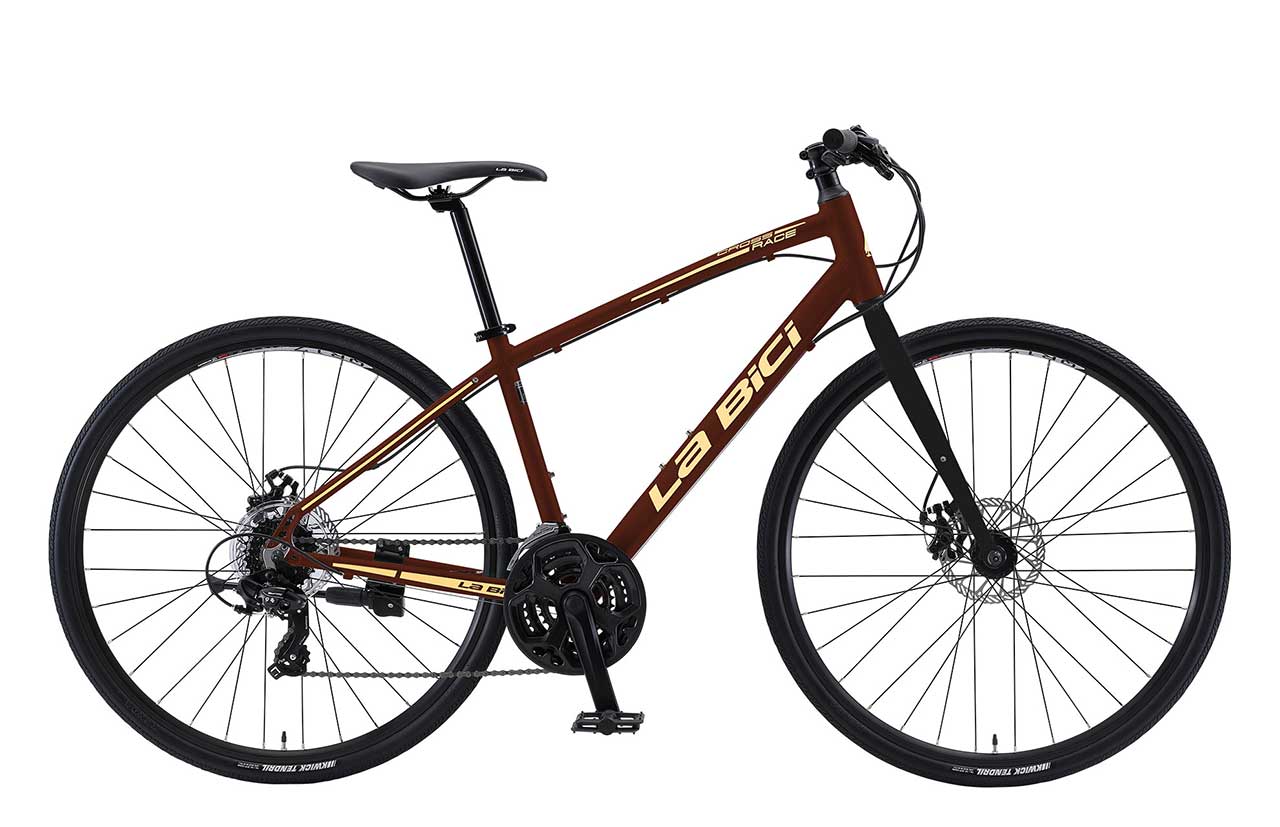

CROSS 700c/BROWNサムネイル2

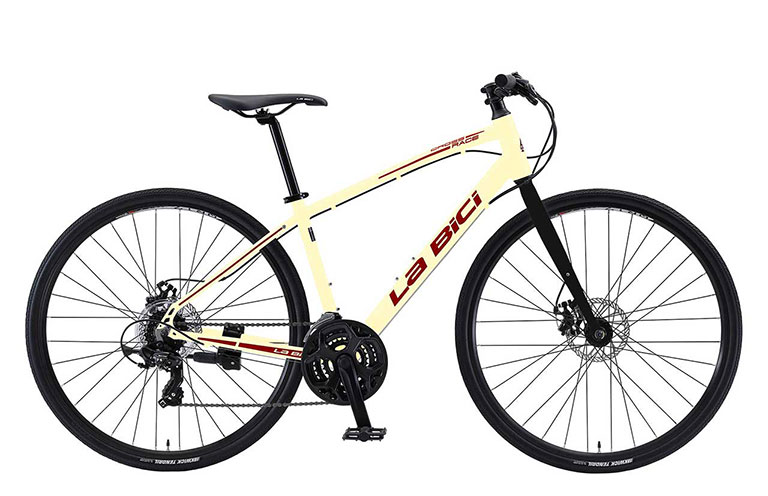

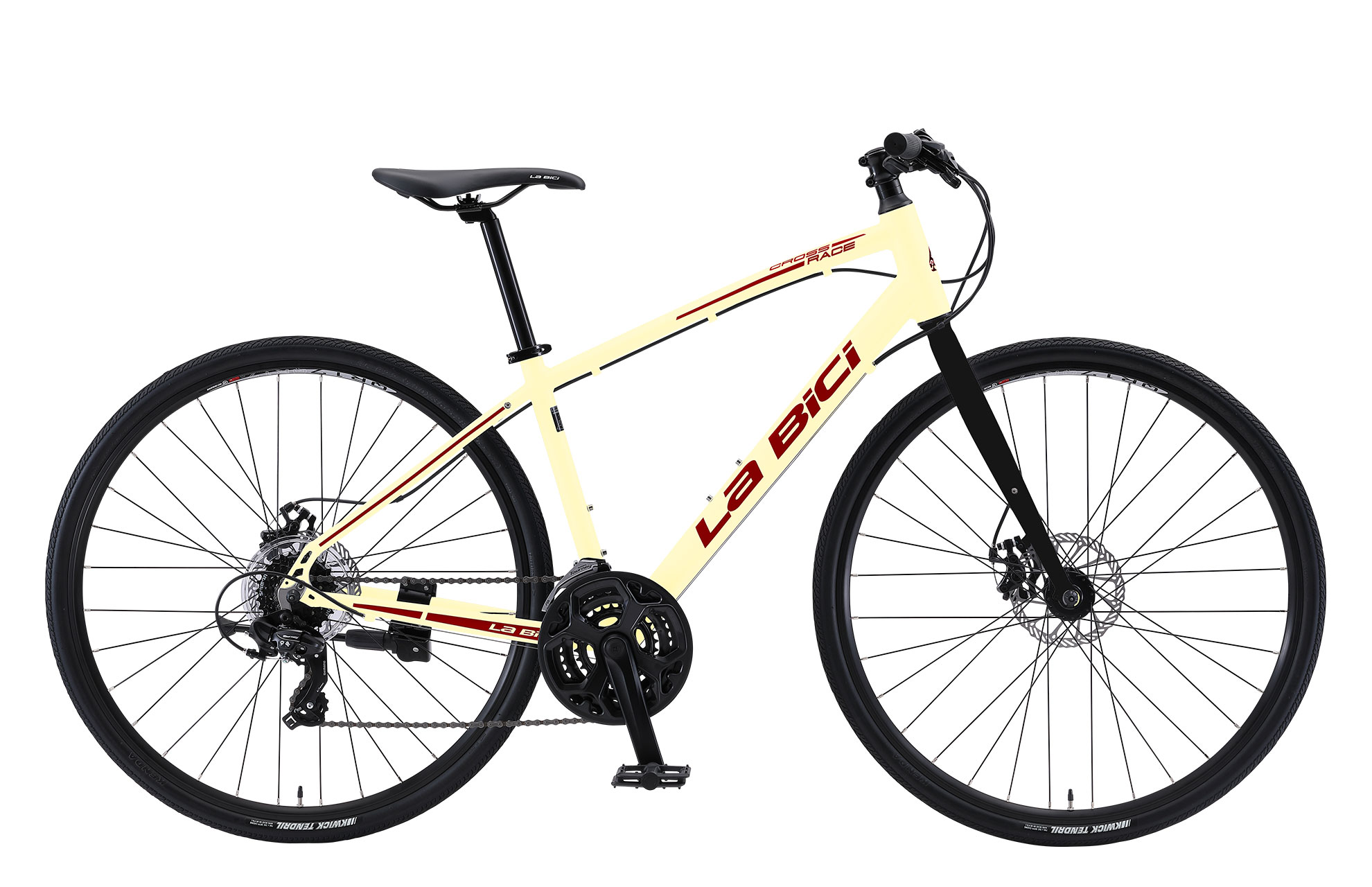

CROSS 700c/IVORYサムネイル2

CROSS 700c

¥65,780(In Tax)

乗降しやすいスローピングトップチューブにフラットバーハンドルを装備したCROSS 700C。 通勤通学はもちろん、どこに出かけるにも軽快なスポーツフィーリングを約束します。

SPECIFICATIONS

SIZE 380mm(145-160cm), 420mm(155-170cm), 460mm(160-180cm)
MAIN COMPONENTS SHIMANO TX-800 TOURNEY(21SPEED)
FRAME MATERIAL AL6061 700C INTERNASIONAL STANDARD BRAKE MOUNT
FRONT FORK 700C CR-MO, OFFSET:48, w/INTER NATIONAL MOUNT
HEAD SET 28.6 STEEL ED BLACK, w/15MM CONE
HANDLE BAR 31.8mm, 580mm WIDE, 6° BACK
STEM 31.8mm CLAMP ,7°, 60mm(380mm/420mm), 75mm(460mm)LENGTH
CRANK SET PROWHEEL 7S, 48Tx38Tx28T, 170mm(380mm/420mm), 175mm(460mm)
B/B (B/B WIDTH/AXLE) W:68mm,L:124.5mm
PEDAL VP VP-536C
FRONT DERAILLEUR SHIMANO FD-TY510-TS3, TOURNEY, BAND TYPE (31.8mm)
REAR DERAILLEUR SHIMANO RD-TX800, TOURNEY TX, 7-SPEED
SHIFTER SHINANO ST-EF500, 21-SPEED
BRAKE JAK JAK-7, MECHANICAL DISC, BRAKE F/R 160mm ROTOR
BRAKE LEVER ALLOY BLACK LEVER & BRACKET
FREE WHEEL+C4:D4 SHIMANO CS-HG200-7, 7-SPEED
CHAIN KMC Z7
SADDLE SELLE ROYAL MATT BLACK COVER W/ORIGUNAL LOGO
SEAT POST KALLOY 27.2mmx350mm
FRONT WHEEL WEINMANN 700c 32H RIM, 6HOLE DISC HUB, 14G STAINLESS SPOKES
REAR WHEEL WEINMANN 700c 32H RIM, 6HOLE DISC HUB, 14G STAINLESS SPOKES
HUB JOYTECH 6HOLE DISC HUB
RIM WEINMANN 700c 32H RIM
TIRE KENDA 700x35c BLACK 30TPI
Accessories KICK STAND
COLOR BLACK, WHITE,ORANGE,BROWN(限定色),IVORY(限定色)

GEOMETRY

ジオメトリ図
TYPE
NAME
CROSS BIKE 700C
A/
Frame Size
(mm)
380 420 460
B/
Top Tube
(Horizontal)
(mm)
543 558 573
C/
Head Angle
70 71 71
D/
Seat Angle
73.5 73.5 73.5
E/
Rear Center
(mm)
440 440 440
F/
Wheel Base
(mm)
1041 1048 1062
G/
Fork Offset
(mm)
48 48 48
H/
BB Drop
(mm)
70 70 70
I/
Head Tube
(mm)
130 155 155
J/
Stand Over
Height
(mm)
711 746 768
L/
Stack
(mm)
562 589 589
M/
Reach
(mm)
376 384 398
※リアエンド幅
(mm)
135 135 135
適応身長
(cm)
145
~160
155
~170
160
~180
